LEGG offers a comprehensive range of belt profiles. For optimum performance even under the toughest of conditions all profiles are integrally molded into the belt using rubber cleat extrusion.

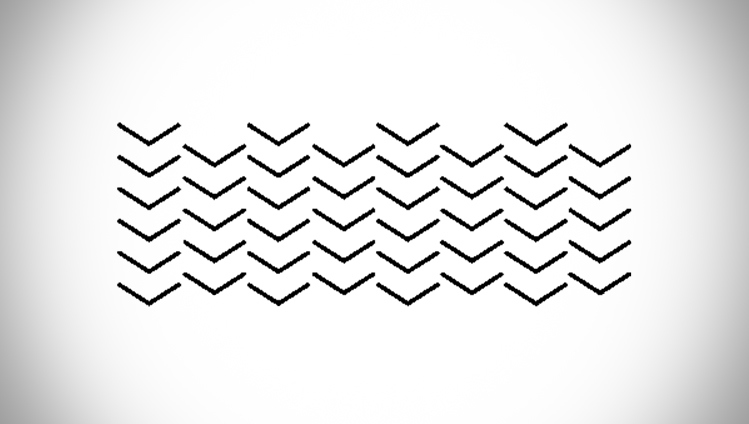

V-Cleat handles everything from rocks to asphalt and has an excellent product traction, exceptional wear resistance and it’s full width slitable manufacture.

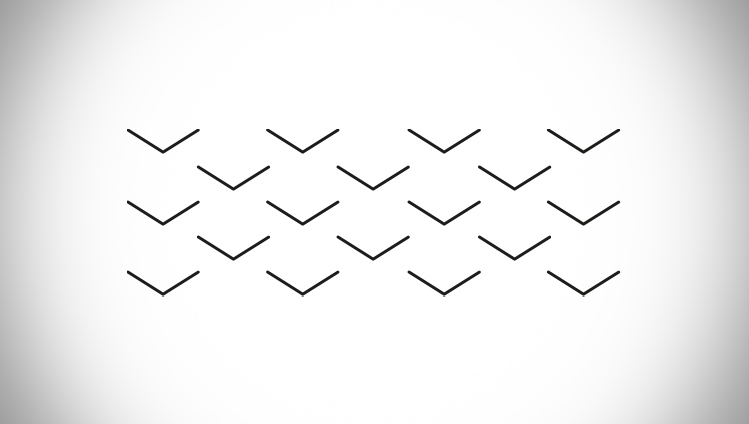

Super-V-Cleat
Like V-Cleat the Super V profile features a 1/4"H x 3/8"W repeating chevron. The difference lies in the greater distance between the V-shaped elements.

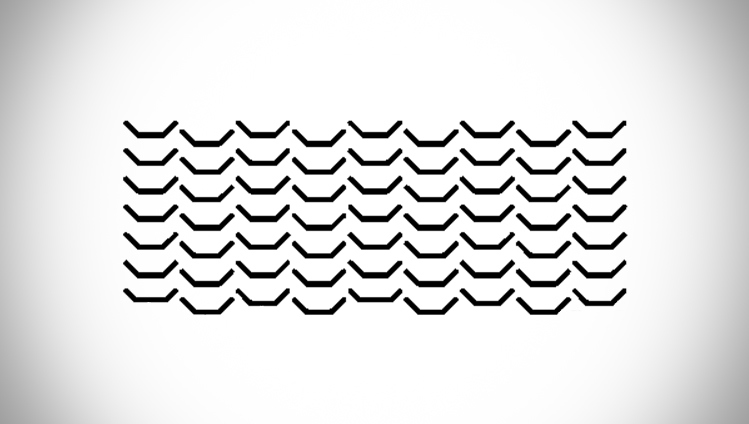

Mini-Bite
The Mini-Bite is excellent for handling fine bulk material such as grain, nut shells, sawdust, etc. and is full width slitable.

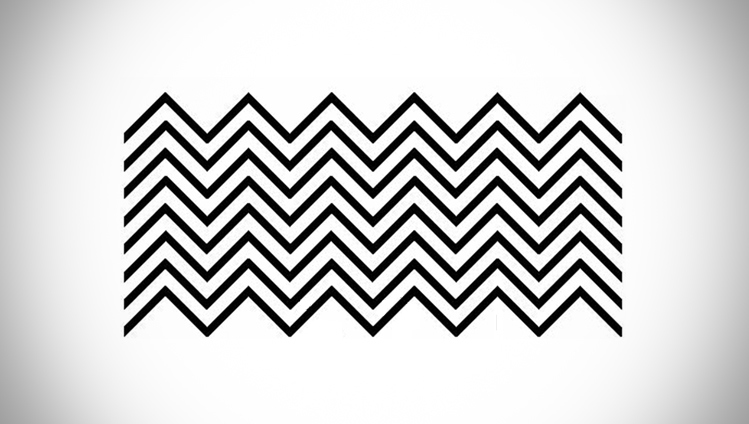

Continuous Chevron
The triangular continuous chevron makes this pattern an excellent choice for efficient high incline conveying.

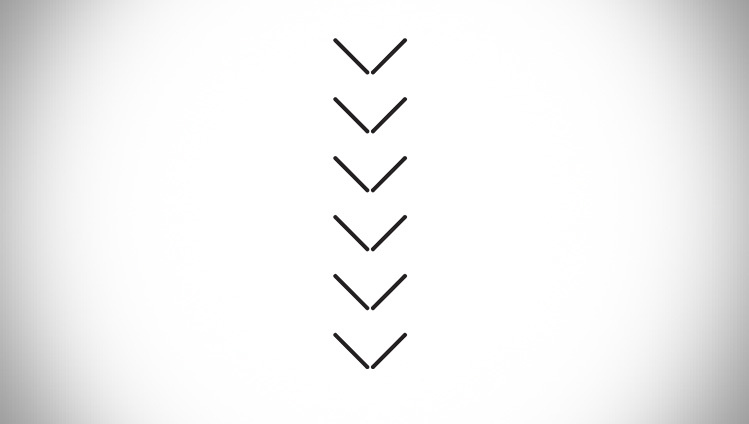

Stone Slinger
The Stone Slinger profile features exceptional 10’’ wide chevrons.

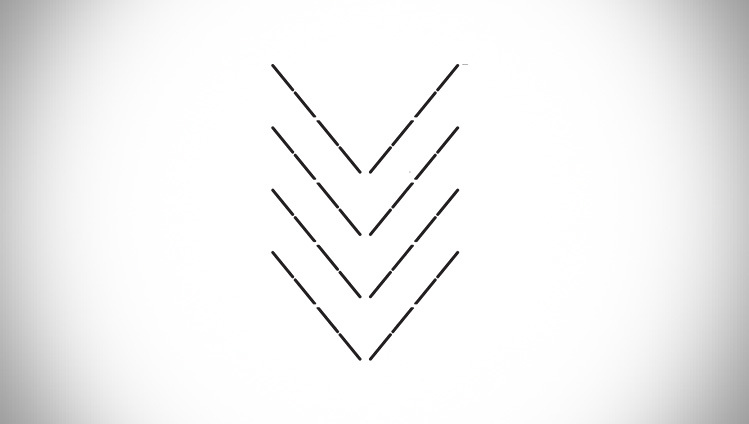

Titan
The chevron shape of these cleats provide optimal movement of the product towards the center of the belt and the ½" x ½" cleat gives great bite to the product.

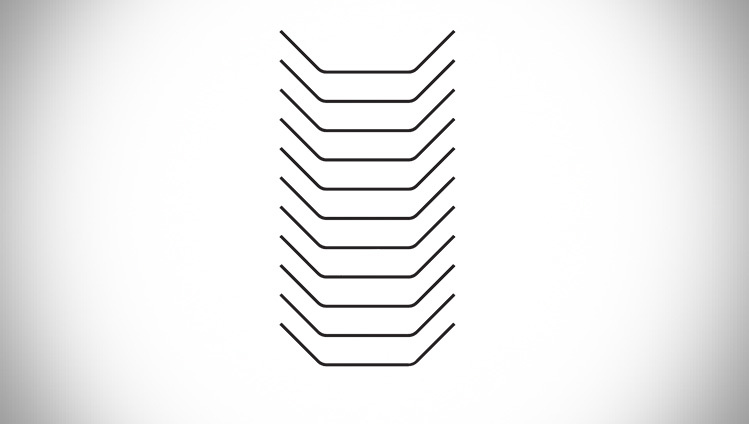

Mega-Bite
The Mega-Bite has a ½" x ½" bucket pattern with exceptional material bite. The angled cleat enables for a quiet vibration free return.

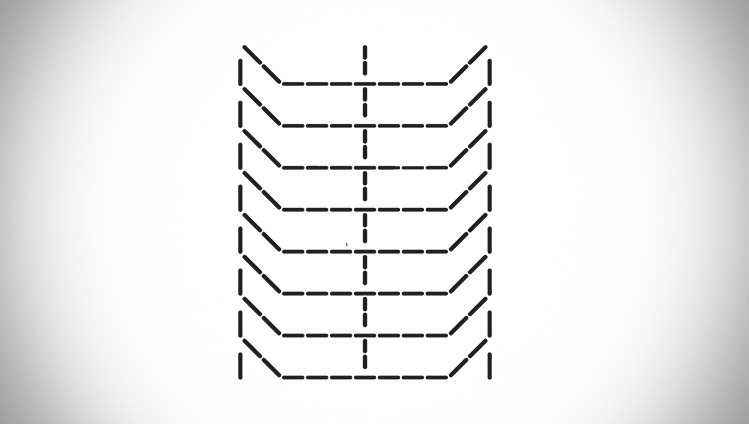

Mega-Bite II
The Mega-Bite II gives extreme bite to products going up steeper inclines. The inward slant of the cleats keeps product movement to the center of the belt.

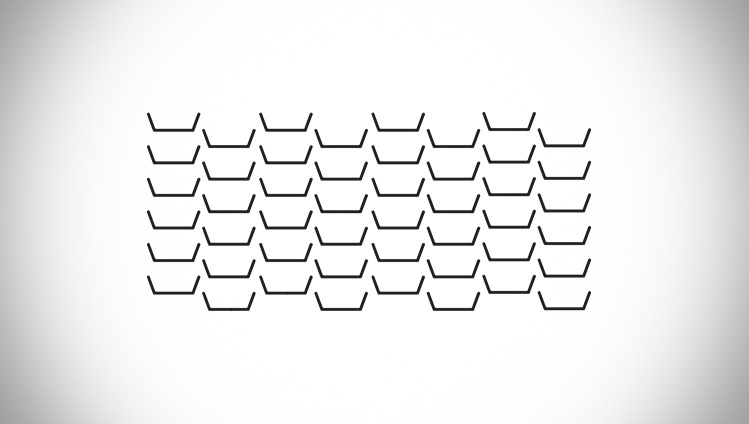

Maxi Bite
Maxi Bite features a repeating 1/4"H x 3/8"W bucket top profile and is full width slitable.

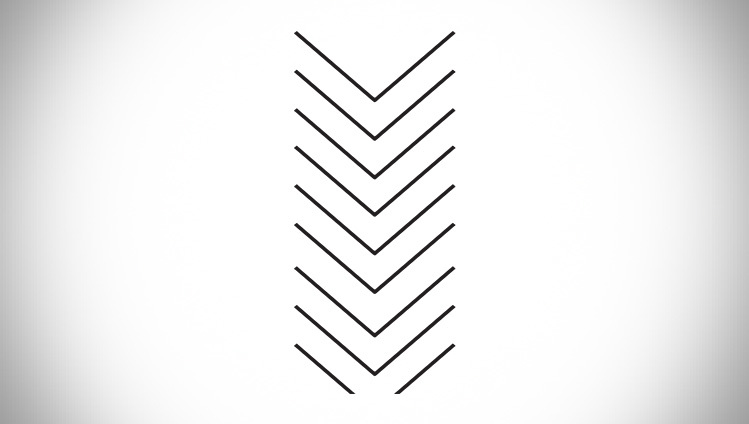

Hercules
The chevron style cleat offers hours of service life moving bulk material up an incline. The pattern and the bevel of the cleats provide a quiet and smooth return.

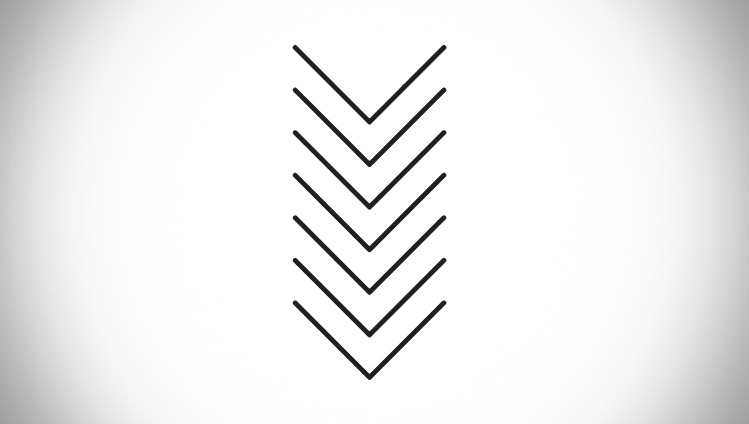

Atlas
The Atlas with its chevron shaped and massive cleats will deliver the product up a steep incline. It is available in all the Legend and Champion carcasses.

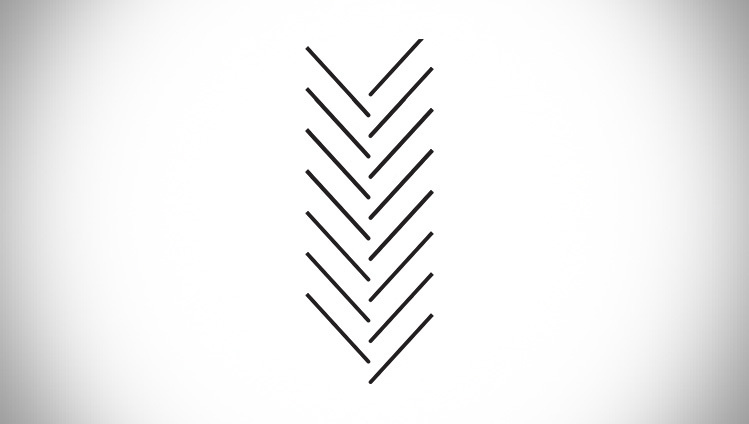

Tract-R-Tread
Tract-R-Tread's 1" x 1" cleat pattern offers incredible material bite while maximizing water and small material roll back.

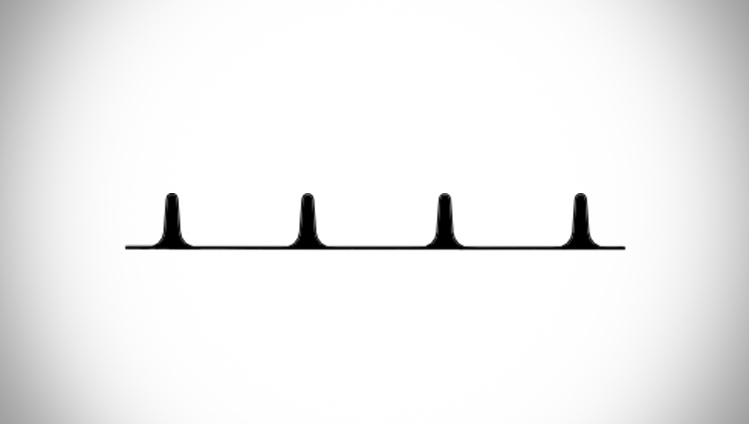

T-Cleats
LEGG Company manufactures a wide variety of cleat heights integrally molded during the initial curing of the base belt for a 100% homogenous product.

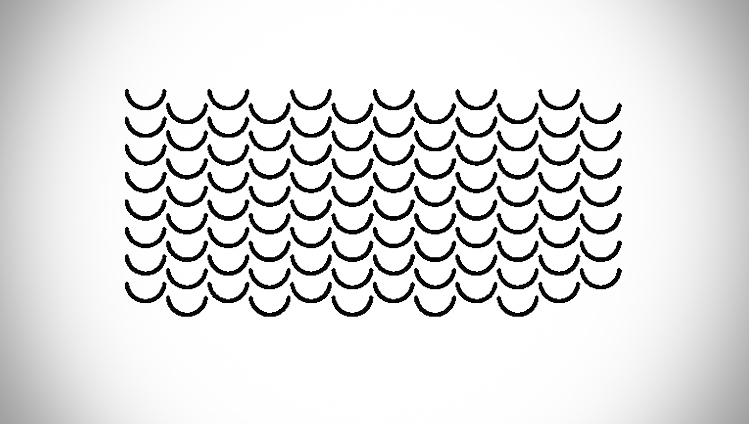

Mini-U
Mini-U has a small 3/16" x 5/32" U-pattern for conveying the finest of materials.

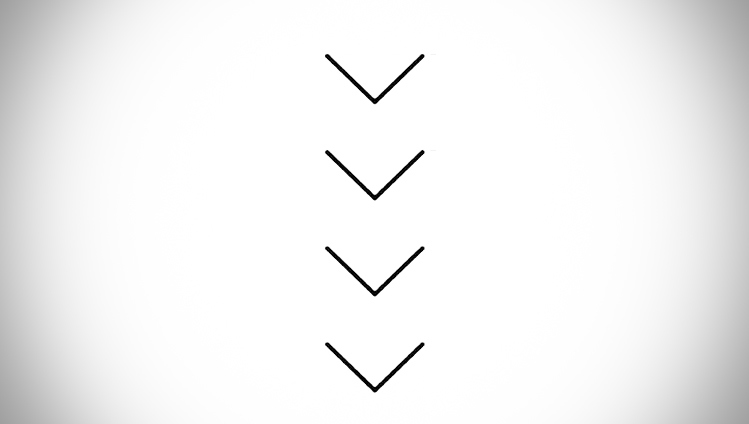

Roof Gravel
Our Roof Gravel pattern consists of 45 degree chevrons, 2’’ in height.

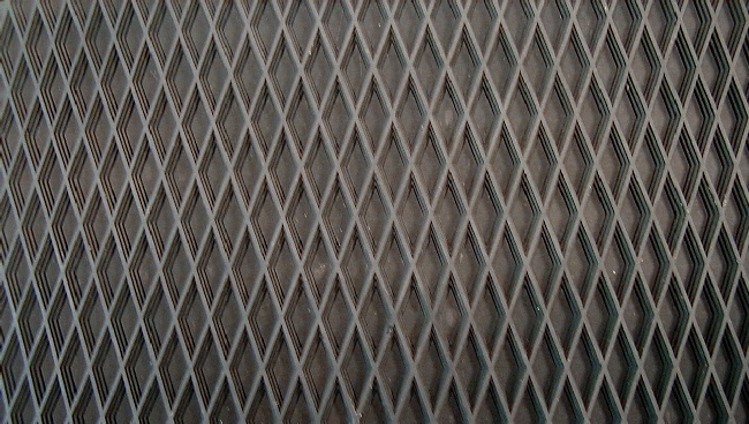

XT GII
The RMA Grade II SBR with black skims is ideal for the conveying of many products. Its features include a high coefficient of friction and an excellent wear value.
XT MOR
XT MOR is ideal for conveying products with mild oil content or a slight amount of oil. It has a moderately high coefficient of friction and an excellent wear.
GI
The Grade I SBR has high cut and gouge resistance and is generally used in rock handling applications.
TPG
Tan Pure Gum offers an extremely high coefficient of friction and is ideal to get incline. It is very flexible and non marking and has excellent abrasion resistance.
TNM SBR
Tan Non Marking SBR can be used to handle cosmetics. It is very economical and has good abrasion resistance and good cut and gouge resistance.
Carcass Choices
LEGG Company offers a variety of carcass selections in different combinations from fabric plies and rubber skims of polyester, nylon and cotton.

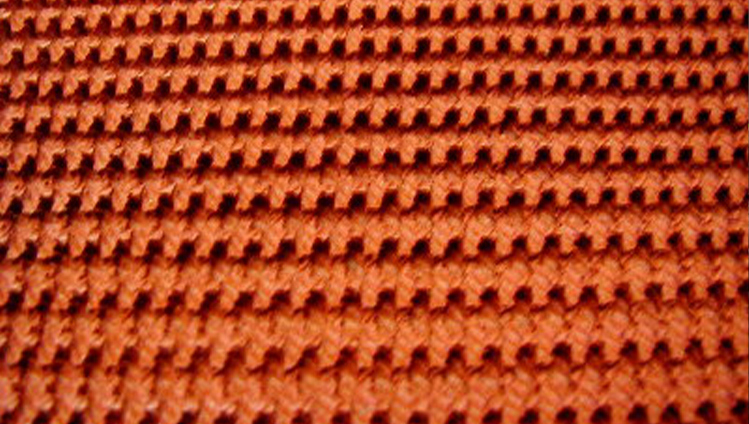

Compounds
For the different carcass selections we offer natural, natural/synthetic, and all synthetic compounds which fit the ever increasing demand for belt performance.
